Hanson & Edwards Gallery of Stranders & Closers

The range of stranders and closers manufactured by Hanson & Edwards covers a wide variety of different types and sizes of machinery, ranging from smaller 6in (152mm) diameter closers to very large 48in (1219mm) diameter stranding and closing machines.

For further details, please browse the gallery below.

Product information and specifications are also shown in our Technical Library.

(Click on the image to enlarge)

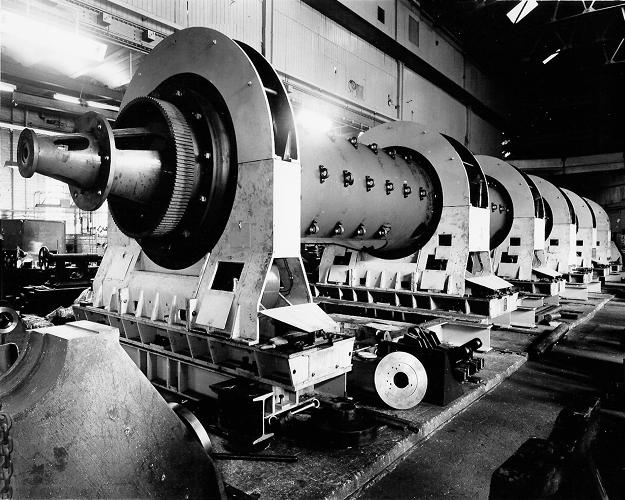

48in Strander & Closer

6 Bobbin x 48in diameter tubular stranding & closing machine

used for ropemaking

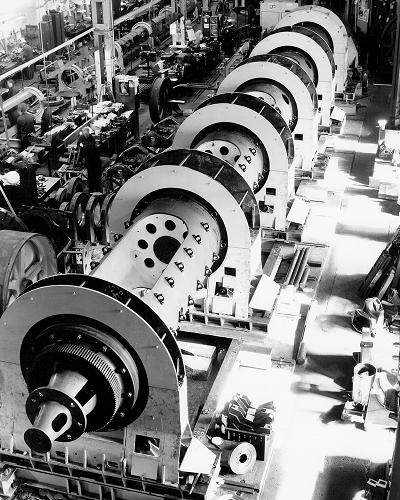

48in Strander & Closer

6 Bobbin x 48in diameter tubular stranding & closing machine

used for ropemaking

40in Strander & Closer

6 Bobbin x 40in diameter tubular stranding & closing machine used for ropemaking

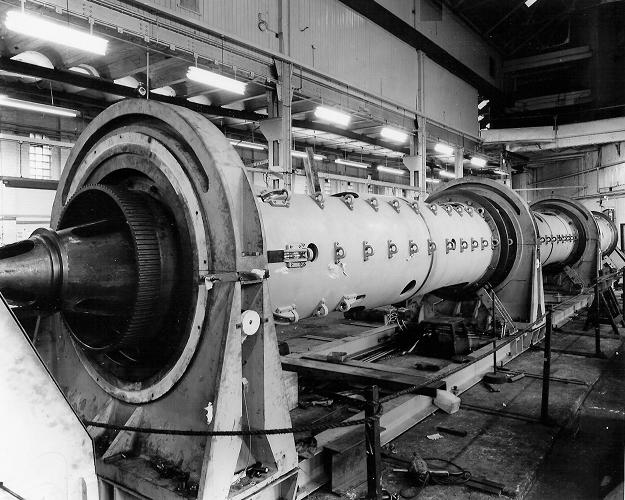

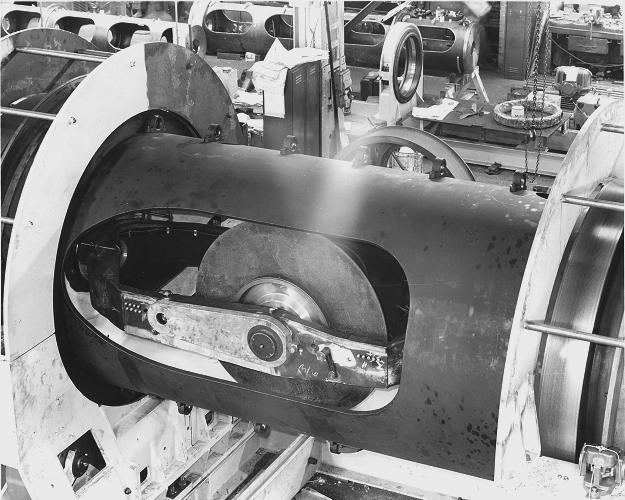

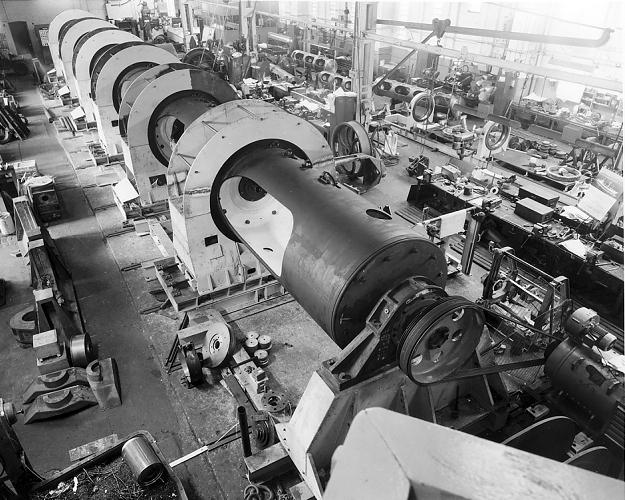

40in Strander & Closer

6 Bobbin x 40in diameter tubular stranding & closing machine under construction

40in Strander & Closer

Detail of cradle, showing reel

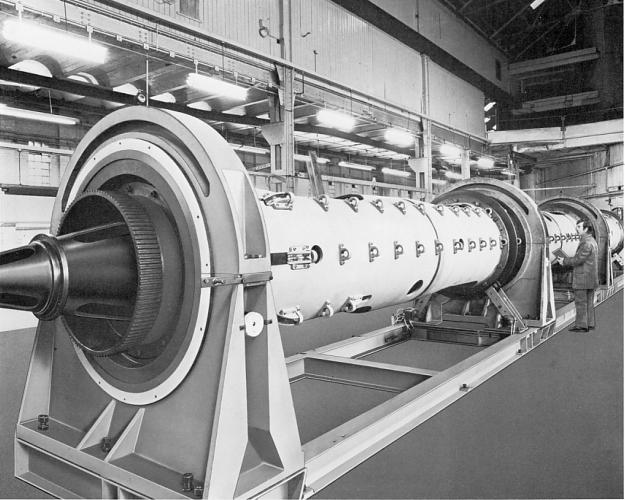

36in Strander & Closer

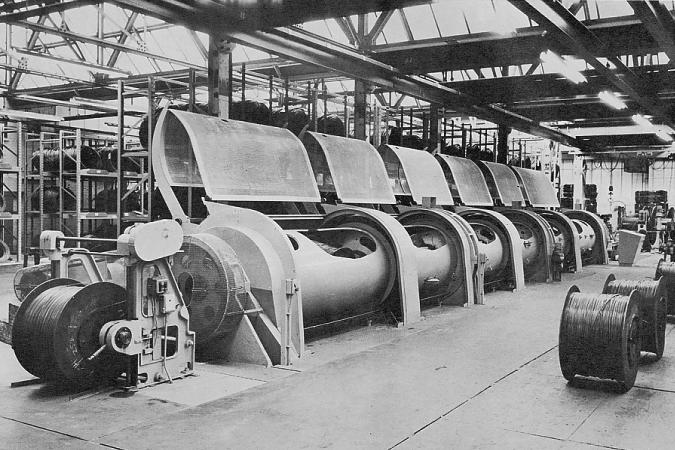

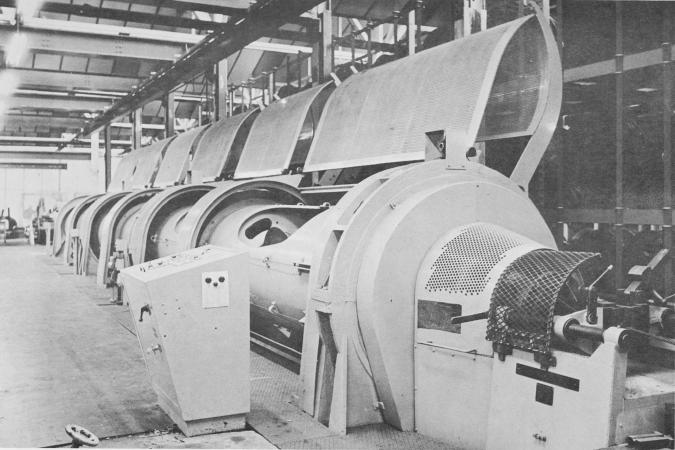

34in Tubular Strander

6 bobbin x 34in diameter tubular strander with guards open

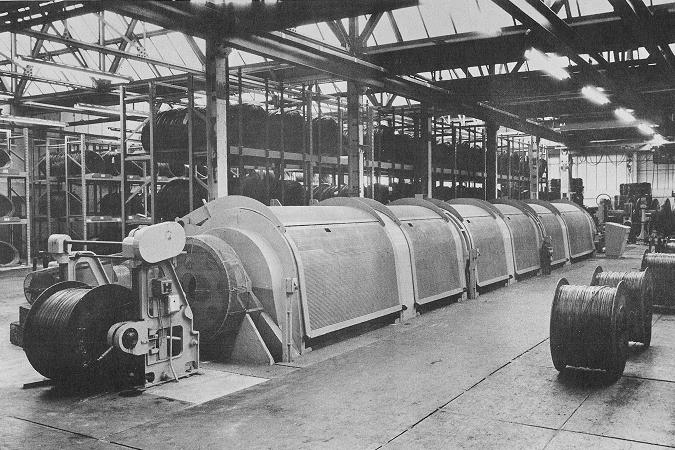

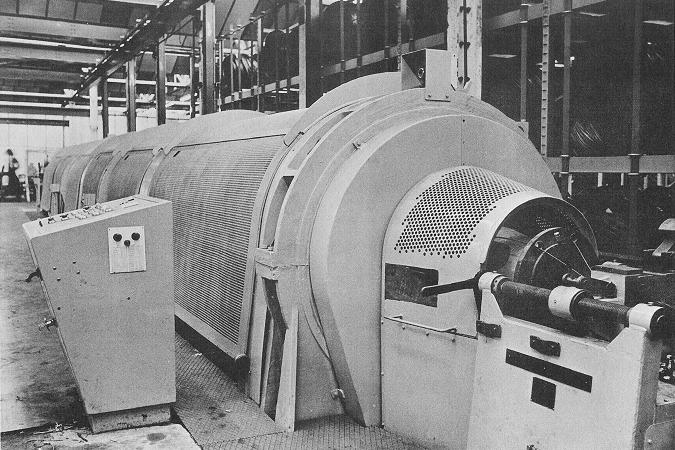

34in Tubular Strander

6 bobbin x 34in diameter tubular strander with guards closed

34in Tubular Strander

6 bobbin x 34in diameter tubular strander with guards open

34in Tubular Strander

6 bobbin x 34in diameter tubular strander with guards closed

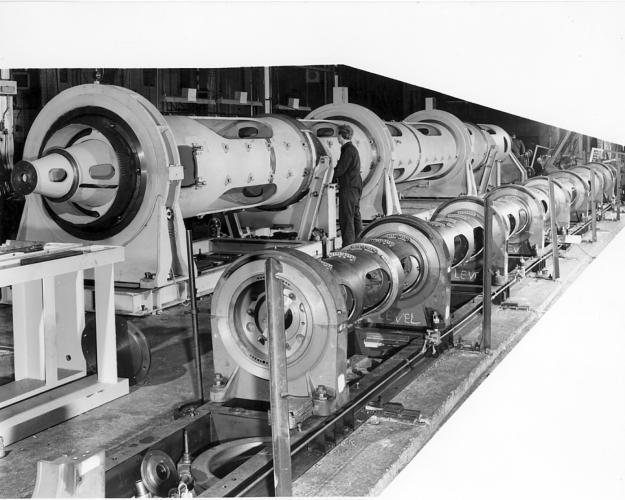

18in Strander shown with 24in Closer

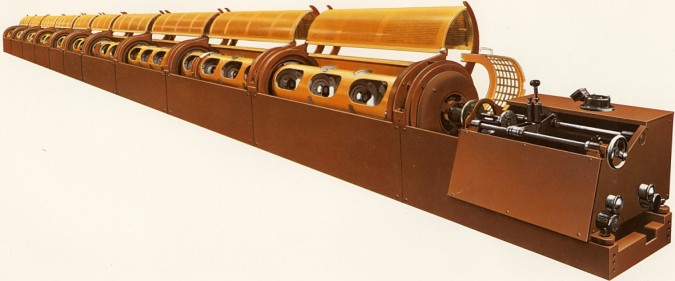

18in Tubular Strander

30 bobbin x 18in diameter tubular strander

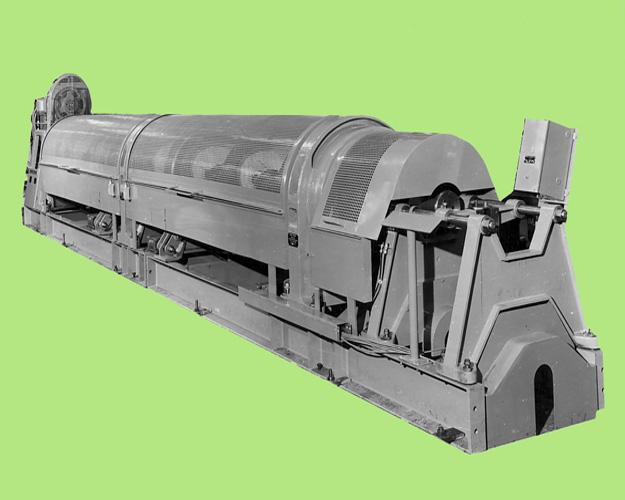

12in Tubular Strander

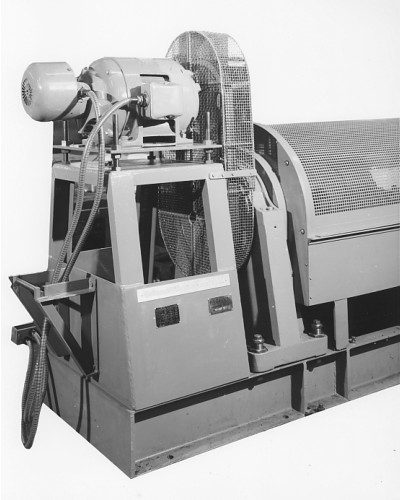

12in Tubular Strander

Typical motor drive installation

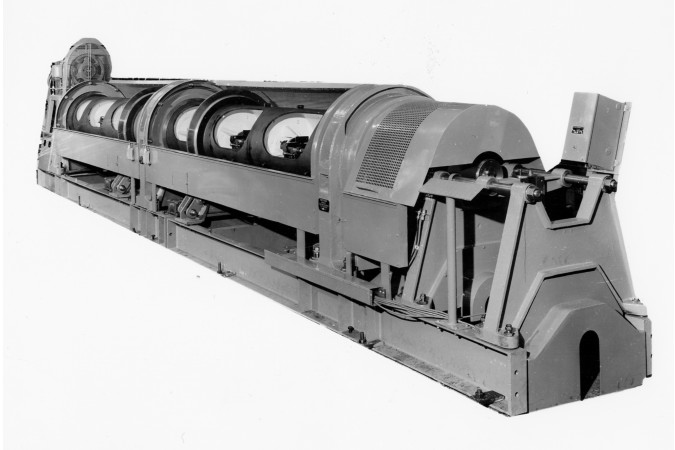

16in Tubular Strander

6 bobbin x 16in diameter tubular strander with guards removed

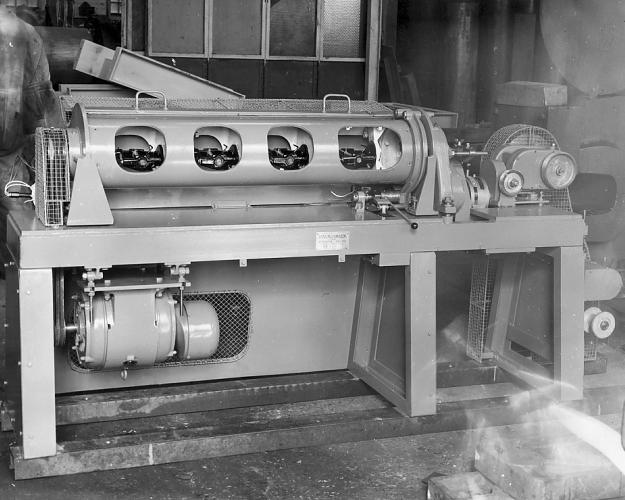

6in Tubular Strander

Bench mounted small capacity strander

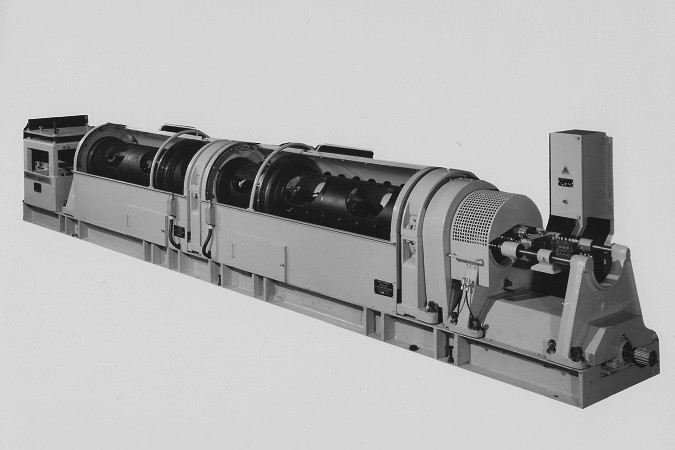

9in Closer

6 bobbin x 9in diameter closing machine

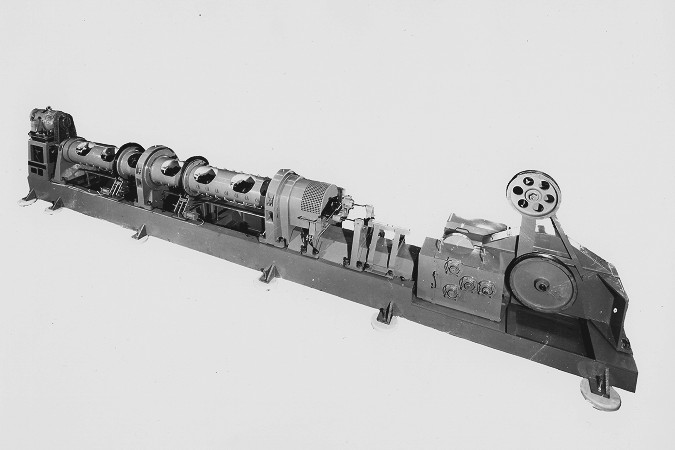

Tyre Cord Closing Machine

6 bobbin x 9in diameter tyre cord closing machine

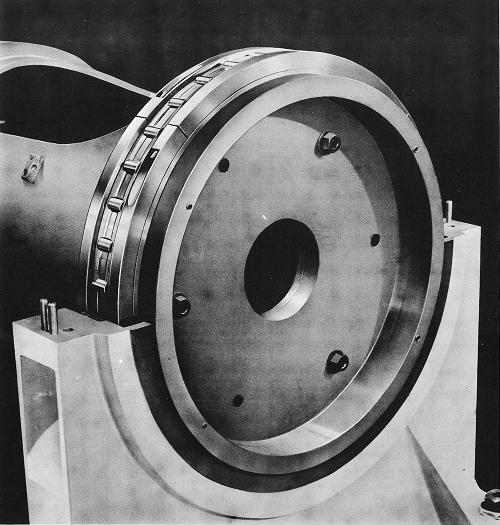

Typical Cooper Bearing Installation

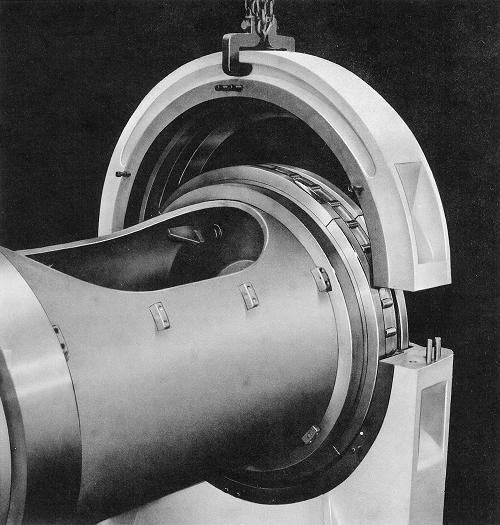

Typical Cooper Bearing Installation

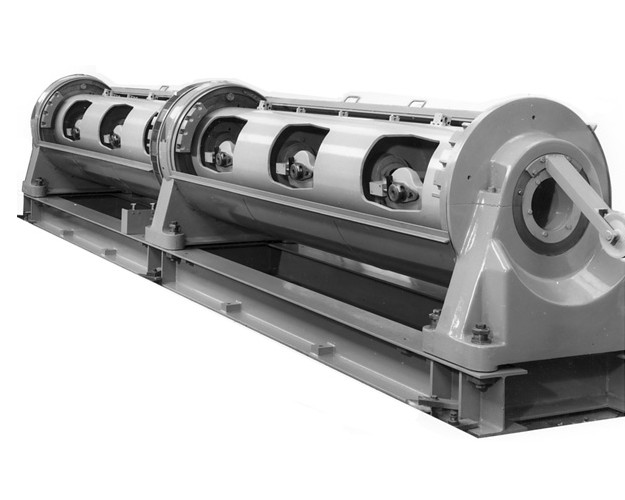

DIN400 Tubular Strander

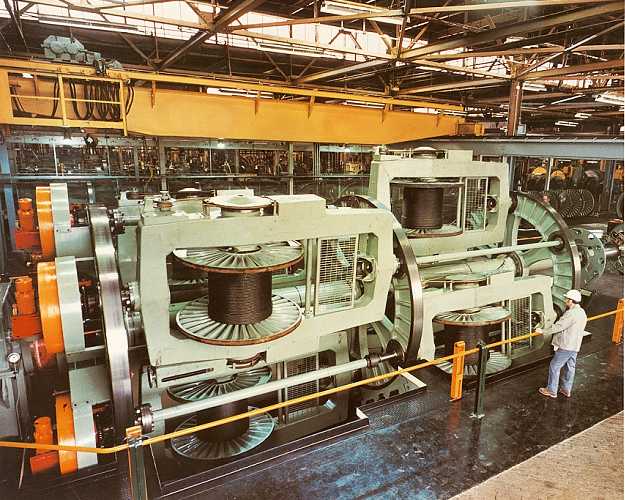

120 Tonne Closer

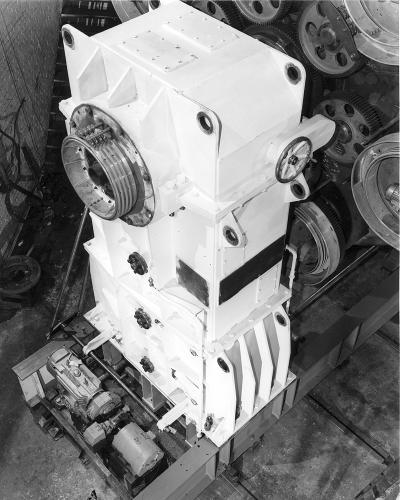

120 Tonne Closer

Drive gearbox

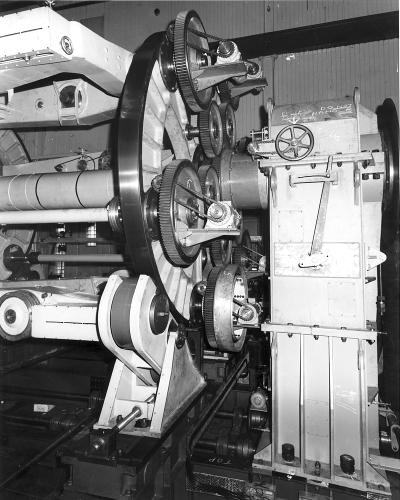

120 Tonne Closer

Planetary gears

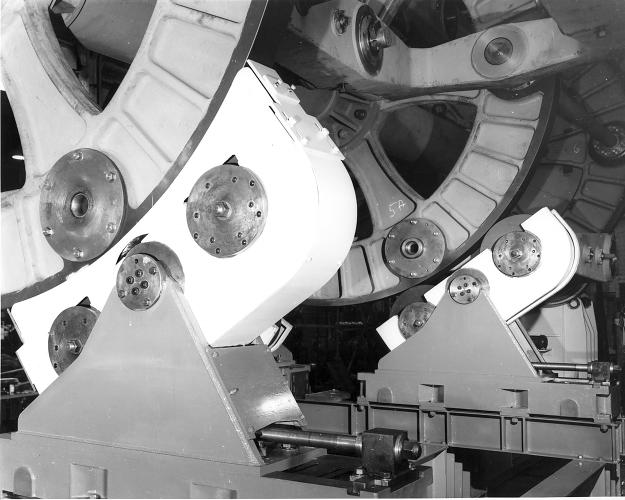

120 Tonne Closer

Ring support

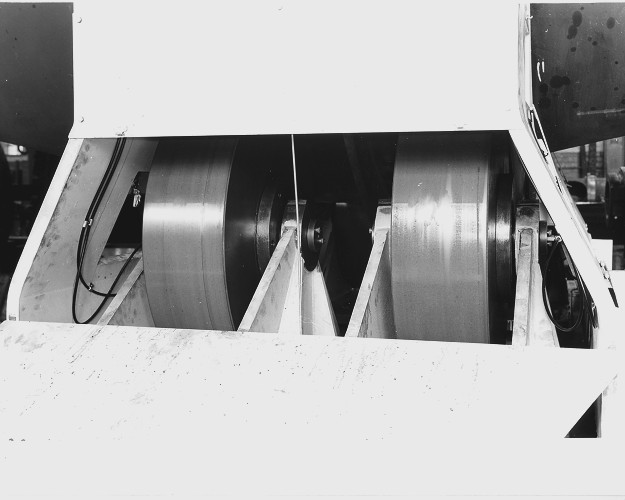

120 Tonne Closer

Under roller detail

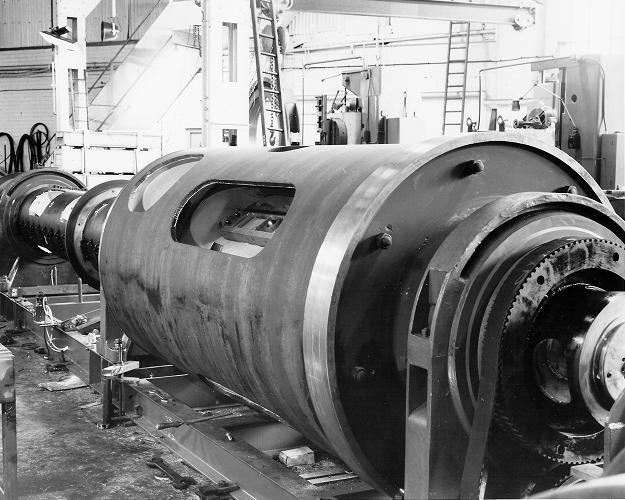

Flattened Strand Machine

Flattened strand machine with 12 x 18in diameter rotor and 1 x 32in core section

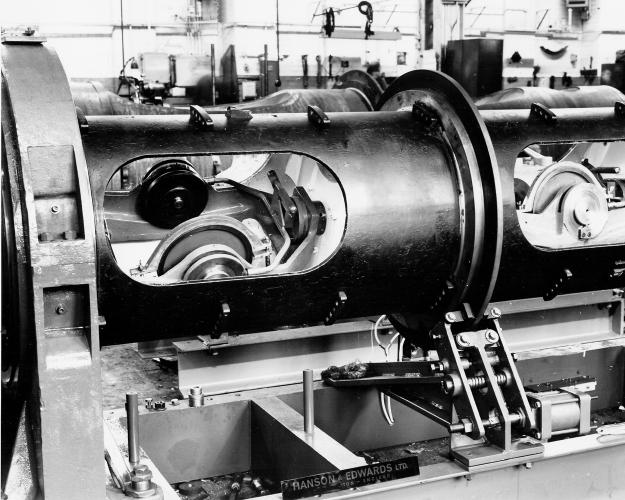

Flattened Strand Machine

Detail of 12 x 18in diameter section of flattened strand machine

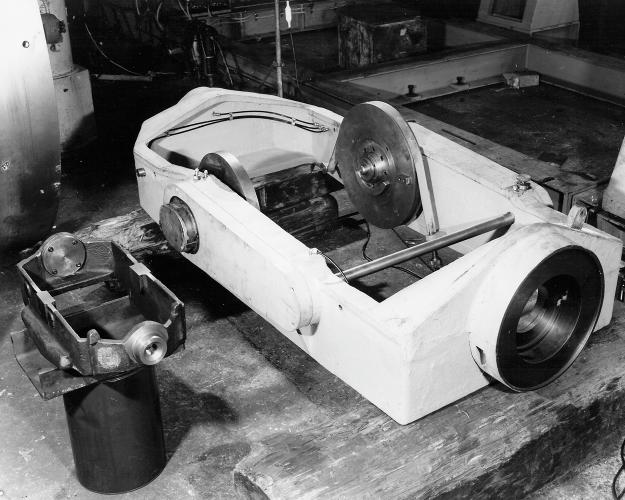

Reel Cradles

Cradles for 12.5in and 40in diameter reels

Fast, reliable service

We offer genuine Hanson & Edwards parts, which often cost no more than parts sourced locally by copying worn parts.  Your investment in genuine Hanson & Edwards spares and replacement parts will be paid back many times over years of trouble free, high quality production.

We offer a fast, reliable service that ensures genuine Hanson & Edwards parts are available to meet your tight deadlines.  Please contact us for further information.
